Fast Speed 3rd DC Brushless Motor Unblocked Low Noise Longer Life For Sliding Gate Automatic Barrier Gate

Brand Name : WONSUN

Model Number : DZJX-3

Certification : CE ISO SGS

Place of Origin : CHINA

MOQ : 1 set

Price : $299/set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 3000 set/sets per month

Packaging Details : Packed in bubble wrap firstly,and then reinforced with carton for outer packing

Name : 3rd DC Brushless motor

Place of original : Guangdong,China

Color : Black

Usage : barrier gate

CRM/ODM : supported

Working temperature : -35°C to +65°C

Contact Now

Fast Speed 3rd DC Brushless Motor Unblocked Low Noise Longer Life For Sliding Gate Automatic Barrier Gate

Model No. DZJX-3
Framework Material Cold-roll sheet
Beam Aluminum alloy
Relative power 150W
Net Weight 48KG
Input Interface Photo cell, loop detector, parking system,wire control
Input 12V relay signal or Pulse Wide>100MS
Power Supply 24V
Brand WONSUN
Working Temperature -35°C to +65°C
Remote control system ≤100m(open,sunny weather)
MCBF 5million time
Push Button Support
Remote Control Two button remote transmitter, Distance≤100m
Optional Accessories Loop detector; IR photo cell
Motor no-road speed 1085 r/min
Opening/Close Time 1.5sec~6sec

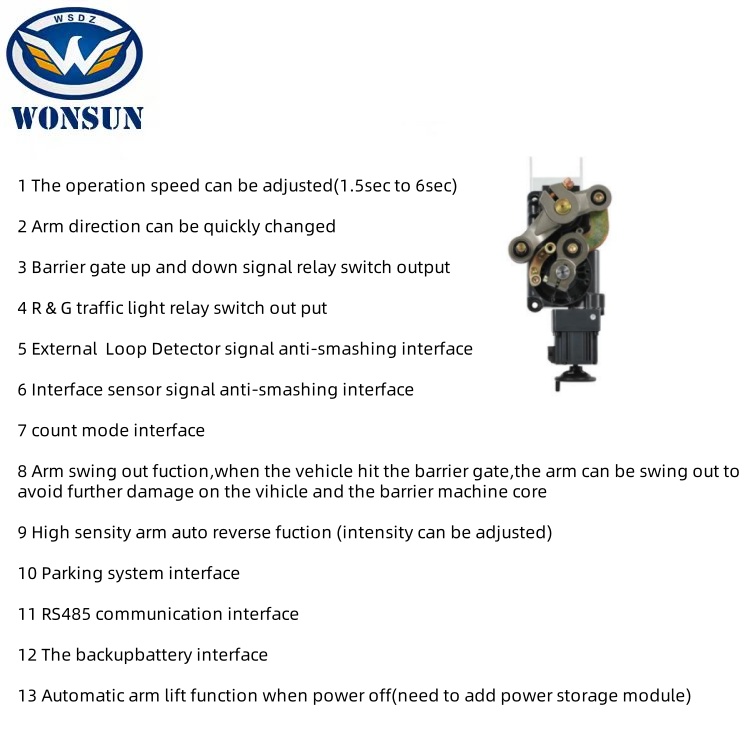

Functions and Features:


1 The operation speed can be adjusted(1.5sec to 6sec)

2 Arm direction can be quickly changed

3 Barrier gate up and down signal relay switch output

4 R & G traffic light relay switch out put

5 External Loop Detectorsignal anti-smashing interface

6 Interface sensorsignal anti-smashing interface
7 count mode interface
8 Arm swing out fuction,when the vehicle hit the barrier gate,the arm can be swing out toavoid further damage on the vihicle and the barrier machine core
9 High sensity arm auto reverse fuction (intensity can be adjusted)
10 Parking system interface
11 RS485 communication interface
12 The backupbatteryinterface
13 Automatic arm lift function when power off(need to add power storage module)

Fast Speed 3rd DC Brushless Motor Unblocked Low Noise Longer Life For Sliding Gate Automatic Barrier Gate

Fast Speed 3rd DC Brushless Motor Unblocked Low Noise Longer Life For Sliding Gate Automatic Barrier Gate

Fast Speed 3rd DC Brushless Motor Unblocked Low Noise Longer Life For Sliding Gate Automatic Barrier GateFast Speed 3rd DC Brushless Motor Unblocked Low Noise Longer Life For Sliding Gate Automatic Barrier Gate

Fast Speed 3rd DC Brushless Motor Unblocked Low Noise Longer Life For Sliding Gate Automatic Barrier GateFast Speed 3rd DC Brushless Motor Unblocked Low Noise Longer Life For Sliding Gate Automatic Barrier Gate

Fast Speed 3rd DC Brushless Motor Unblocked Low Noise Longer Life For Sliding Gate Automatic Barrier GateFast Speed 3rd DC Brushless Motor Unblocked Low Noise Longer Life For Sliding Gate Automatic Barrier Gate

Our Services

Service for free:
1. One year free service is supplied(not including the arm and remote)

2. Lifetime charged service is supplied

3. Technical service is supplied

4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.

5. Technical support and aftersales service, it is a long term relatioship between us.

6. Price can be negotiable when you have big order quantity.

Service for charging:

1. Broken by wrong installation

2. Broken by improper voltage

3. The surfaces of the barrier destroyed by wrong installation and usage

4. Overdue service items are out of our promise.

FAQ

Q: Are you trading company or manufacturer ?
A: We are a professional barrier gate manufacturer, indusrty and trade integration.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock. or it is 5-7 days if the goods are not in stock, it is according to quantity.

We can send it for you by DHL/Fedex/TNT/SEA/AIR or your requirments.
Q: How about payment terms our company provide?
A: T/T or Western Union or
Q: Do you provide samples ?
A:No,we don't provide free samples. The MOQ of our products is 1pc.
