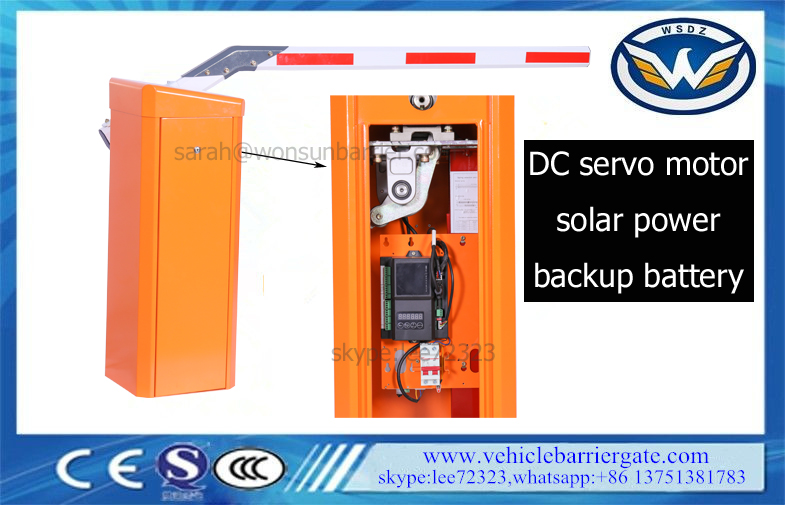

Backup Battery Servo Barrier Gate Automatic Boom Barrier IP54
Quick Details:
1. The gate automatically open when the power is off, no clutch design, no need human intervention
2. The use of Single Compression Balance Spring device, good regulation, no noise, indefatigable, not easily broken, safe and reliable
3.Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves prominent place to install.
Parameters
| DZ-138 barrier gate | V06T | V09T |
| Max Boom Length and Diameter | 2500mm, Ф75mm | 3000mm, Ф75mm |
| Open/Close Time | 0.6sec | 0.9sec,2.5sec,4.5sec |
| Power Supply | 24/100/240VAC,50/60Hz | 24/100/240VAC,50/60Hz |
| Power Consumption | max.150W | 100w |
| Machine Case | Varnished 2.0mm steel plate | Varnished 2.0mm steel plate |
| Machine Case Size(W*D*H) | 342*312*959mm | 342*312*959mm |
| Net Weight | 43kg | 42.6kg |
| Operating Temperature Range℃ | -45℃~+85℃ | -45℃~+85℃ |
| Driving Method | Servo motor | Servo motor |
| Protection System(IP) | 54 | 54 |
| Insulation Class | F | F |
| Relative Humidity | ≤90% | ≤90% |
| Motor No-load Speed | 3000r/min | 3000r/min |
| Remote Control Distance | ≤100m (open, sunny weather) | ≤100m (open, sunny weather) |
| Output Torque | 1.2N.M*140=160N.M | 0.86N.M*140=120N.M |
| Running Noise＜ | 45dB | 45dB |
| Surface Treatment | Outdoor metal powder electrostatic spraying | Outdoor metal powder electrostatic spraying |
| DZ Controller | | |
| Voltage(±10%) | 100-240 volt | 100-240 volt |
| Frequency(Hz) | 50-60 | 50-60 |
| Max Power Consumption(watt) | 8 | 8 |
| Fuse | F5AH | F5AH |
| Control Voltage | 24V DC/max.3000mA | 24V DC/max.3000mA |
| Input-end Number | 8 | 8 |
| Open Collector Output Number | 2 | 2 |
| Zero Level Reversal Relay Number | 3 | 3 |
| Operating Temperature Range℃ | -45℃~+85℃ | -45℃~+85℃ |
| Protection System(IP) | 20 | 20 |
| Weight(gram) | 450gram | 450gram |
| Dimension | mm(L-W-H) | 158*126*55 |
Operation Time and Boom Length Configuration Parameter.
| Boom Type(meter) | Operation Time(seconds) | Boom Height(meter) |
| Fast speed boom≤2.5 | 0.6 | 0.83 |
| Fast speed boom≤3 | 0.9 | 0.83 |
| Common straight boom≤4.5 | 2.5 | 0.83 |
| Common straight boom≤6 | 4.5 | 0.83 |
| 80*45mm 90°folding boom≤3 | 1 | 0.83 |
| 80*45mm 90°folding boom≤3.5 | 2.5 | 0.83 |
| 80*45mm 90°folding boom≤5 | 5 | 0.83 |
| 80*45mm 180°folding boom≤3 | 1 | 0.83 |
| 80*45mm 180°folding boom≤4 | 2.5 | 0.83 |
| 80*45mm 180°folding boom≤5 | 4.5 | 0.83 |
| 100*45mm 2 fence boom≤3.5 | 2.5 | 0.83m, small vertical boom is 0.8m, landing boom is 0.9m |
| 100*45mm 2 fence boom≤5 | 6 | 0.83m, small vertical boom is 0.8m, landing boom is 0.9m |
| 100*45mm 3 fence boom≤3 | 3 | 0.83m, small vertical boom is 1.5m, landing boom is 1.6m |
| 100*45mm 3 fence boom≤4 | 6 | 0.83m, small vertical boom is 1.5m, landing boom is 1.6m |
Maintenance
1)Keep the barrier gate clean.
2)Check the joints every month in case of any loose parts.
3)Check the spring elasticity after barrier gate running 30,000times
4)Check the easily worn-out parts(like spring,limit switch)every half year and renew it.
5)Remote control distance will be shortened or not work in cases like big object screening, battery run out.extreme weathers.
FAQ:
1. When barrier finish closing, why does the arm open itself slowly?
- the spring is too tight, you need release the spring a little, then test it again.
- see whether the main crank touch the triangle tightly or not, if tightly, adjust it.
- reset the balance position and the electrical limit switch.
2. Why does the controller panel operate with "Di Di Di" abnormal noises?
- As for this, it means the resistance on controller board is broken, if you have professional tools to check,
- then replace that broken resistance, if not, replace that controller panel.
3. Why does the barrier finish half operation of opening and closing?
- If uses our controller panel, you only need to find resistance R37 on controller panel, and repalce it is ok.
4. When barrier closed, why is there a 5 degree angle of inclination?
- the model is not good, and the gear doesn't fit each other tightly.
- the barrier didn't adjust well, need to reset.
5. When barrier finish open, but it closes itself without any order control, what's the problem?
- To check the loop cable first, because the loop cable maybe brokem
- To check the motor sensor, if it is not set well, then reset it in the middle between two holes on sensor rod.
6. Why does the arm wave a lot when opening and closing?
- The spring is very tight
- The Screw touches the rubber absorption tightly, need to reset again.
7. Rubber linning installation suggestion:
- It is good use for fast speed, like 0.6s, 1s, 1.8s and 3s.
- The place with many vehicles come and go, like shopping center, carpark area.
8. Can you accept OEM/ODM order?
- Absolutely, we are manufacturer of barrier gate, with 7 years researching and developing experience.
